Retest Of High Pressure Gas Cylinder
Implemented System
Information on the implementation of system for retesting of container valve built in diaphragm
Execution of retesting of container component parts that maintains airtightness with diaphragm (implemented on '12. 5. 25)
Although the container valve attached to the containers with contents volume of less than 125L was discarded in the past, container valves with built-in diaphragm can be reused after having passed the retesting.
Container component parts subjected to retesting
Container component parts for the maintenance of the air tightness through diaphragm made of KS D 3698 (cold rolled stainless steel plate and tape) STS 204 or other metals with equivalent or better corrosion resistance
※Article 3-3-3 of the integrated announcement of the standards for the safety management of pressurized gas as amendment on('12.2.13)
- Container valve built in diaphragm is used mostly for special applications including semiconductor industry, etc.
Structure of valve and diaphragm container valve for general industrial use
※ If you don't see the entire table, swipe the table left or right to check.
| For general industries | For semiconductors | ||
|---|---|---|---|
| Valve | O-ring | Valve | Diaphragm |
 |
 |
 |
 |
FLOW - CHART
Standards for retesting of container component parts for pressurized gas [KGS AA316]

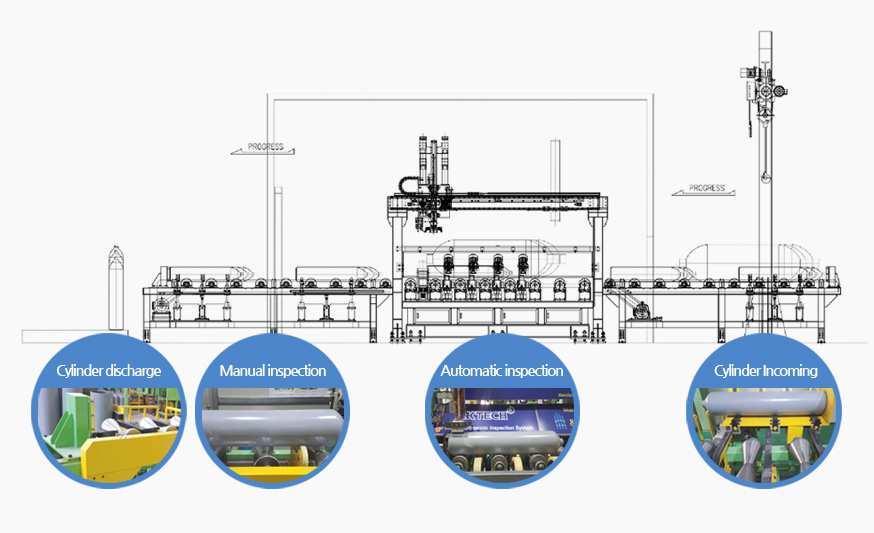

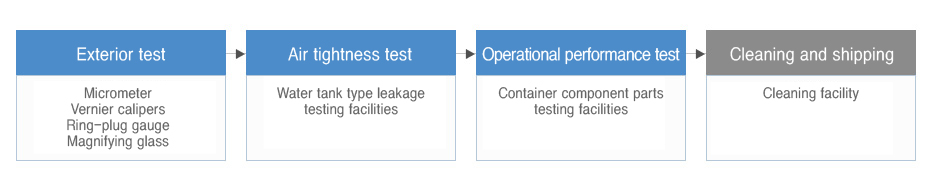

Equipment for each of the processes of retesting of container component parts

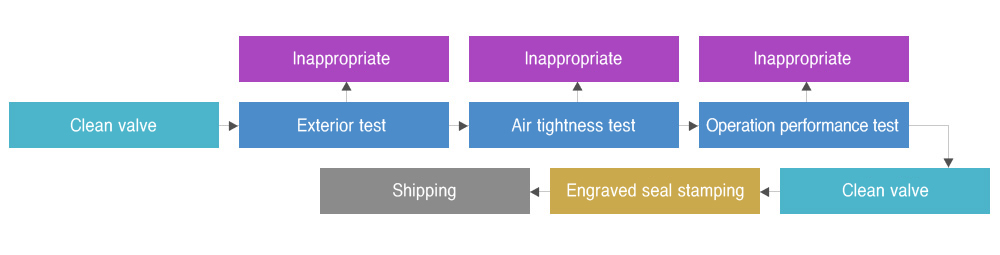

Standard process for retesting of container component parts

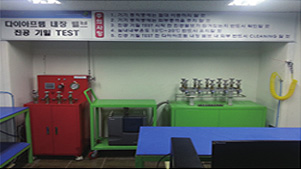

Current Status of Facilities Owned

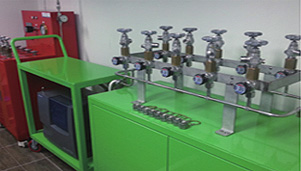

Airtight operation function test
Vacuum operation performance test
Information On Product Testing
NKTECH Co., Ltd., an institution specializing in gas testing, executes not only retesting of the industrial pressurized container but also retesting of ultra-large container and air respirator container as well as retesting of valve for special gas container with built-in diaphragm. Having established ourselves as an institution specializing in testing of pressurized container and container valves, we shall ardently strive to remunerate the passionate support our clients have given us by assertively fulfilling the requirement of our clients.
