Water Mist System
Easy to construct and install, economical water mist system
Patent No.
| Complex fire extinguishing system | 2007.01 20-20060026805 |
|---|---|
| Sprial mist spray type Water Mist Nozzle | 2007.11.20-1007797290000 |
| Change type by sprial mist spray | 2009.01.17-1003803610000 |
Approval
Local Water Mist System : IMO MSC. Circ. 913 KR / Total Water Mist System : IMO MSC. Circ. 1165 & 1269 KR
Regulation
■ Underwriters Laboratories Inc.(UL 2167)
■ Factory Mutual Insurance (FM Class 5560)
■ International Maritime Organization (IMO MSC.Circ. 913 & 1165 & 1269)
■ Verband der Schadensversicherer (VdS)
■ Manufacturers
Product Composition

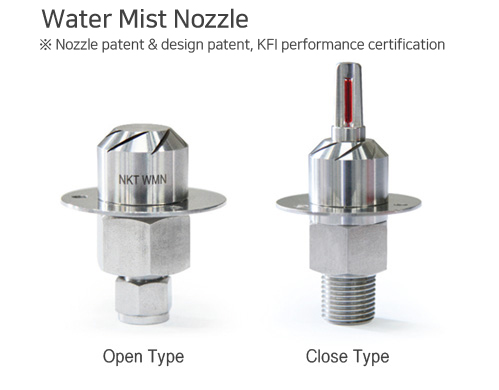

| Product Name | Water Mist Nozzle |
|---|---|
| Model | NKFS - Water Head |
| Connection | 15A PT, 1/2 lok fitting |
| Spray Volume | 3 ~ 20 Lpm (Various Product) |
| Approval | 미헤17-1 |
| Design Pressure | 8 ~ 10 MPa |
| liquid size | 172 ± 25 ㎛ |
| Material | STS316L |
| Type | Open, Close |
| Product Name | Water Mist Gun |
|---|---|
| Model | NKFS-Water Gun |
| Connection | 1/2" Quick Coupling |
| Spray Volume | Direct: 15.2 to 17 Lpm |
| Water Mist : 18~20.1 Lpm | |
| Mixed : 29.2~33 Lpm | |
| Approval | 미건 17 - 2 |
| Design Pressure | 8 ~ 10 MPa |
| liquid size | 160 ± 25 ㎛ |
| Material | STS316L |
| Type | General, Lance |
| Pattern Control | Handle Vertical Moveable adjustment |
| Extinguishing Performance | 7 unit fire extinguisher with B grade fire extinguisher successful digesting model |
| Working Pressure | 80bar / 100bar |
| Spray Type and Flow Rate | 15.2~33 lpm (direct, Spray, mixing) |
NKFS - Water Mist Extinguishing System
| Product Name | Fixed Pump System |
|---|---|
| Power Source | 3 ph 380V or 440V |
| Volume | 30 hp ~ 60 hp |
| Flux | 128 ~ 400 Lpm |
| Working Pressure | 120 bar |
| Water Tank Capacity | 1 ~ 2 ton |
| Apply | Water Mist Gun, Nozzle |

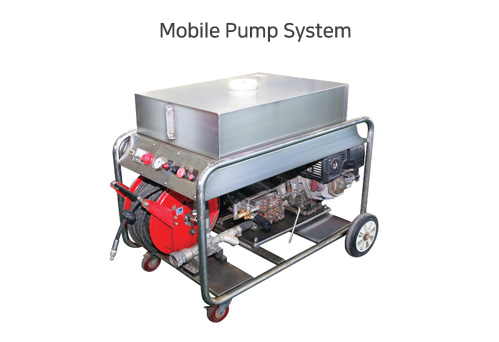

| Product Name | Mobile Pump System |
|---|---|
| Power Source | Gasoline Engine |
| Volume | 13 hp |
| Flux | 25 Lpm |
| Working Pressure | WP80bar (MaxP120bar) |
| Water Tank Capacity | 200 L |
| Apply | Water Mist Gun |
