High Pressure Cylinder
Manufacture high quality high pressure gas cylinder (pressure cylinder) according to customer's demand
High Pressure Cylinder Manufacturing Process
High Pressure Cylinder Specification

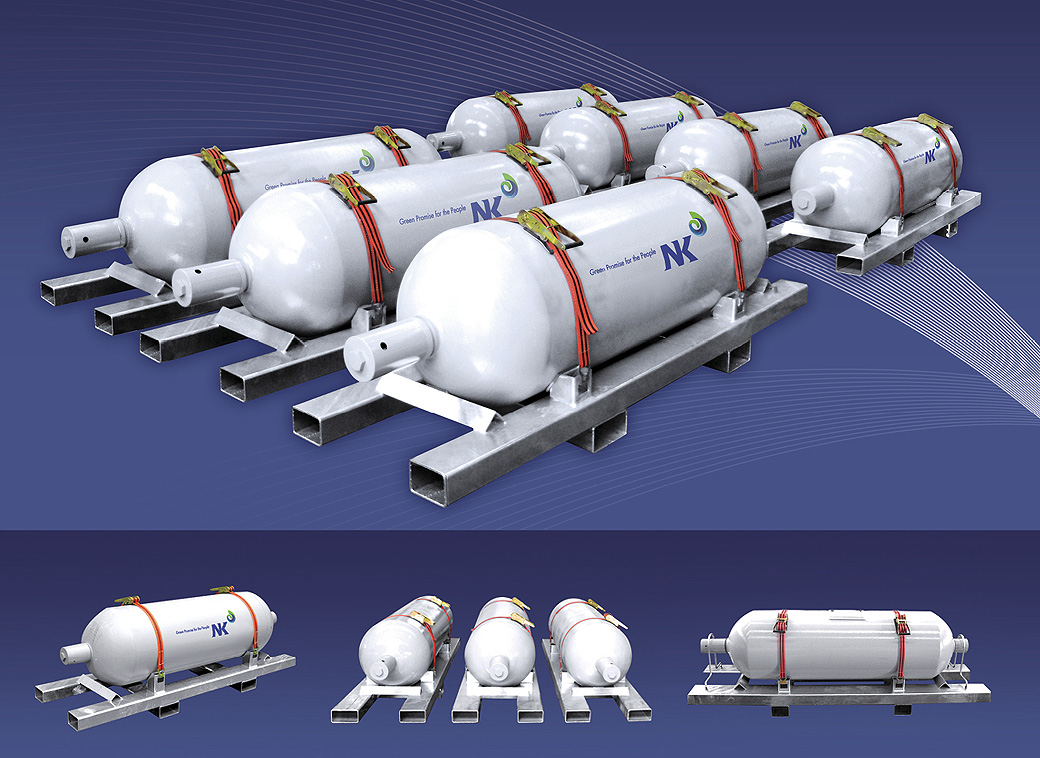

Y-ton Cylinder
- Ultra High Purity and ordinary industrial gases (KGS / DOT 3AA / DOT 3AAX / ISO 11120 / SELO)- Intenal Roughness : 3S / Moisture Level : Below than 1.0 PPM available
※ You can check by swiping the table left or right (swipe).
| Model No | Water Capacity | Diameter | Length | Weight | Gas Capacity | Filling pressure | Test pressure |
|---|---|---|---|---|---|---|---|
| (liter) | (mm) | (mm) | (kg) | (㎥) | (Mpa) | (Mpa) | |
| NA-233 | 440 | 609.6 | 2,115 | 556 | 73 | 16.6 | 27.6 |
| NYL-225B | 470 | 609.6 | 2,235 | 630 | 78 | 16.6 | 27.6 |

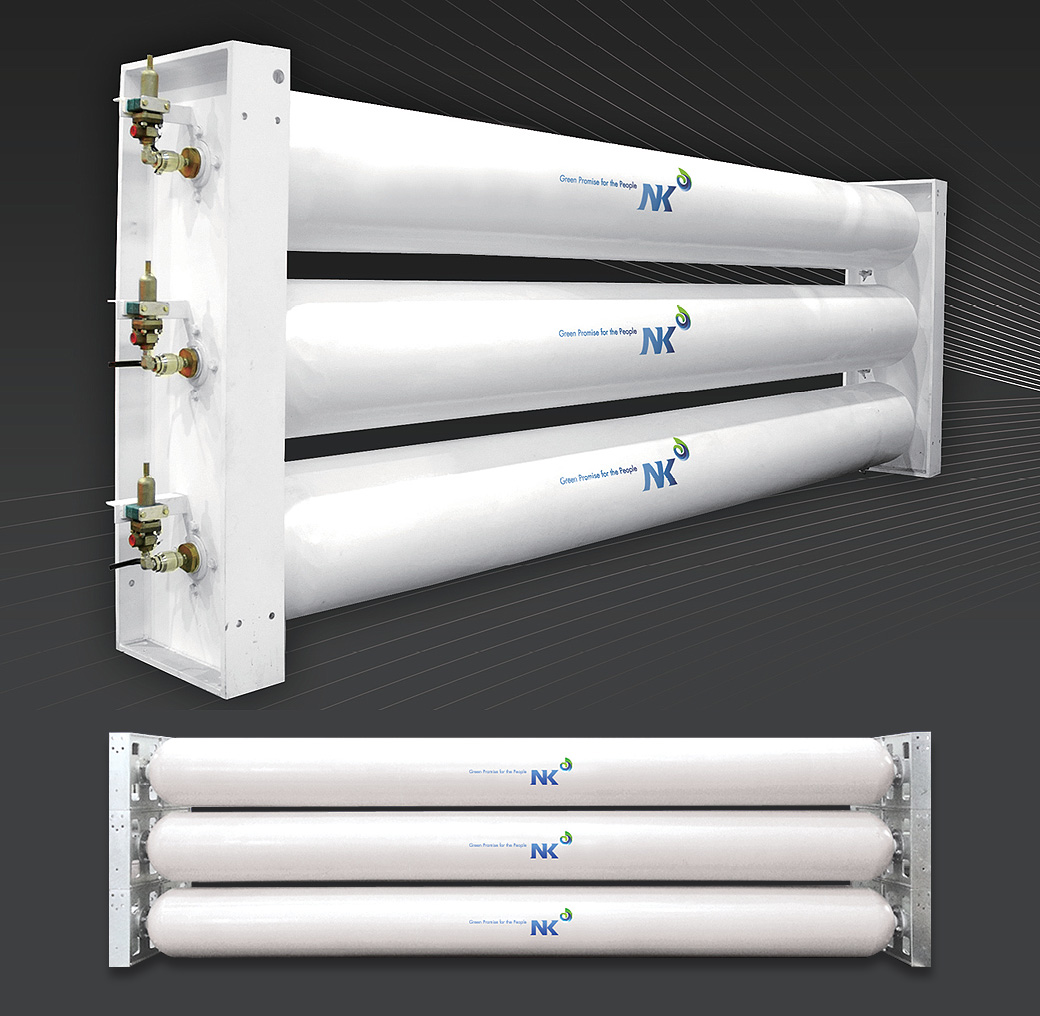

Storage Vessel
- CNG & H2 Station (ASME Sec. VIII, Div. 1 and Appendix 22)- The storage vessels are mainly used for fixed natural gas charging stations of industrial factories & ships.
※ You can check by swiping the table left or right (swipe).
| Model No | Water Capacity | Diameter | Length | Weight | Gas Capacity | Filling pressure | Test pressure |
|---|---|---|---|---|---|---|---|
| (liter) | (mm) | (mm) | (kg) | (㎥) | (Mpa) | (Mpa) | |
| NAM-096 | 300 | 406.4 | 6,505 | 3,840 | 262 | 87.5 | 128.7 |
| NAN-098 | 350 | 406.4 | 7,100 | 4,216 | 306 | 87.5 | 128.7 |
| NAM-095 | 500 | 558.8 | 3,940 | 2,860 | 250 | 50.0 | 72.3 |
| NAM-097 | 1000 | 558.8 | 7,000 | 5,070 | 500 | 50.0 | 72.3 |
| NAM-074 | 500 | 558.8 | 3,585 | 2,300 | 200 | 40.0 | 57.7 |
| NAM-073 | 1000 | 558.8 | 6,555 | 4,095 | 400 | 40.0 | 57.7 |
| NAM-070H | 585 | 609.6 | 3,125 | 1,650 | 145 | 24.8 | 35.9 |
| NAM-003H | 1300 | 609.6 | 6,250 | 3,120 | 322 | 24.8 | 35.9 |
