a fire extinguisher that suppresses fire at the early stage of fire through cooling and suffocation actions by releasing CO2, a nonflammable gas, into the protection zone by storing CO2 in fire extinction container.

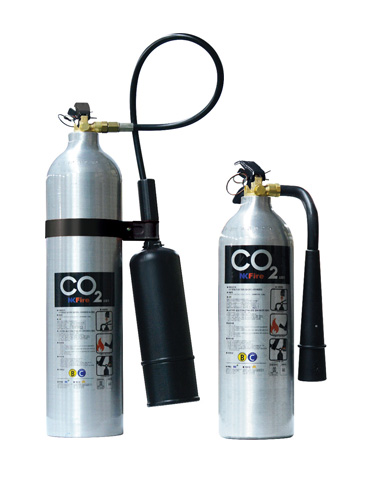

Aluminum CO₂ Passive Fire Extinguisher Features
- Weight has been further reduced through the use of aluminum material.
- It is clean since it leaves no by-product of disintegration and residues at the time of the releasing of CO₂
- It has strong fire extinction power in suppressing fire through the cooling action by rapidly dropping the ambient temperature due to the Joules Thomson effect and oxygen depletion effect.
- Chemical agent and container, etc. are more economic than the existing fire extinguishers and all the components used are made in Korea.
- It is safe at the time of fire extinction on electrical facilities such as electrical room and communication room since there is no risk of electrocution at the time of fire extinction due to its outstanding electrical insulation capabilities.
- There is no need for source of pressurization since the agent is released by the built-in pressure of vapor and no need to recharge regularly since there is no concern for the decomposition of the chemical agent.
Characteristics
Type Name | Carbon dioxide 2.3kg (aluminum material) | Carbon dioxide 4.5kg (aluminum material) |
---|---|---|
Type Number | SUSO 05-6-2 | SUSO 05-18-1 |
Weight | 2.3 kg | 4.5kg |
Chemical Agent Main Ingredients | CO₂ | CO₂ |
Total Weight | 6.6 kg | 12.2 kg |
Emission Distance | 2~3 m | 3~4 m |
Unit of Fire Extinction Capability | B1 and C ratings | B3 and C ratings |
Test Pressure of Cylinder | 24.5 MPa | 24.5 MPa |
Operating Pressure of Safety Valve | 17.6~24.5 MPa | 17.6~24.5 MPa |
Range of The Operating Temperature | -20~40 ℃ | -20~40 ℃ |
Emission Time | 20 seconds | 20 seconds |
Country Of Origin
Cylinder | Korea | Hose | Korea |
---|---|---|---|
Valve | Korea | Fire Extinguishing Agent | Korea |

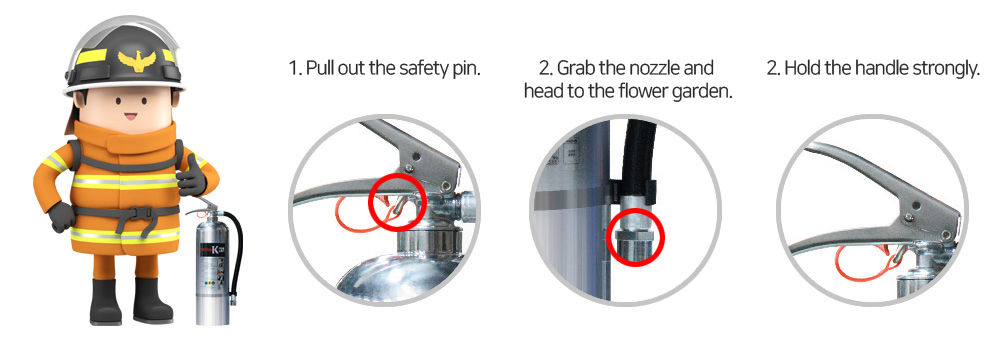

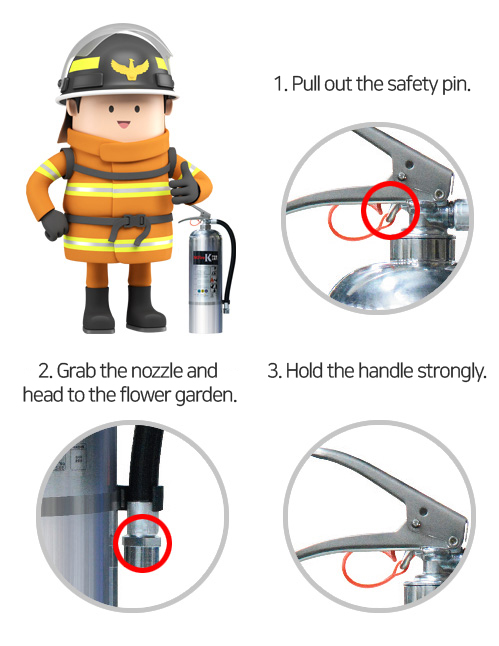

How to use manual CO₂ fire extinguisher
Application
Electricity and electronics related facilities such as electrical room, communication device room and computerization room, etc., and locations with special combustible substances such as inflammable gas / solids / liquids, etc.
