It is a facility that can reduce the pressure consistently with the system that increases pressure to that of the depth similar to that reached by divers by injecting compressed air into the chamber and then decompressing the internal aspect of the chamber while having the divers to inhale pressurized oxygen in order to discharge the nitrogen remaining in the body of the divers.

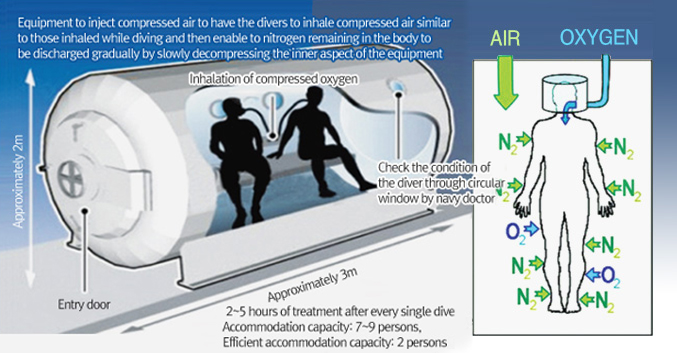

Conceptual Diagram of The Process

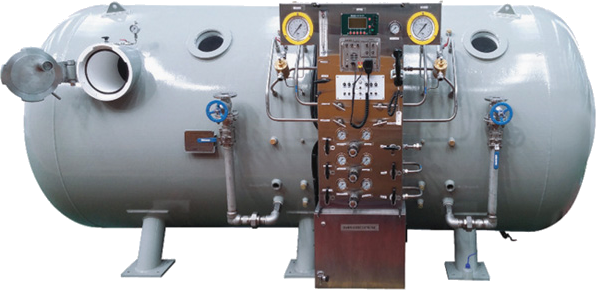

Commercial Product
Reference for Commercialization
LENGTH | 4,400 mm ( Main Lock : 3,100 mm / Entry Lock : 1,300 mm ) |
---|---|
Diameter(inside) | 1,800 mm |
Height | 2,000 mm |
Volume | 10.4 ㎥ |
Viewport window | 2 ~ 4 EA |
Code & standard | ASME Section VIII Div.1, PVHO-1 |
Working pressure | 7 bar |
Test pressure | 11 bar |
Approval | KR(Korean Register) |
· 3 DIVER PANEL
· CONTROL PANEL
· MIX GAS CYLINDER
· H.P AIR TANK
